Cantilever Sliding Gate System
Trackless, high-security cantilever gates custom-engineered for industrial perimeters, commercial sites, and luxury villa estates.
Zero Ground-Track Maintenance: Suspended trackless design glides smoothly above the driveway and eliminates ground rails that can be blocked by ice, snow, gravel, or uneven terrain.

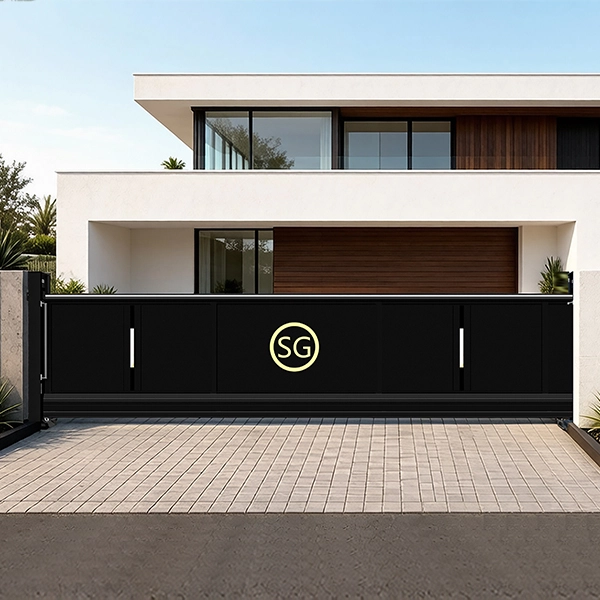

Versatile Architectural Customization: Flexible manufacturing supports heavy-duty industrial perimeter openings and high-end residential villa privacy style panels.
6005-T6 and 6063-T5 Alloy with Certified Coating: Structural aluminum alloy and AkzoNobel fluorocarbon finish support long-term corrosion resistance and color retention.
Seamless Smart Access Integration: Compatible with remote controls, keypads, access control systems, loop detectors, infrared sensors, and project-specific automation controls.
A Space-Saving Solution for Secure Access

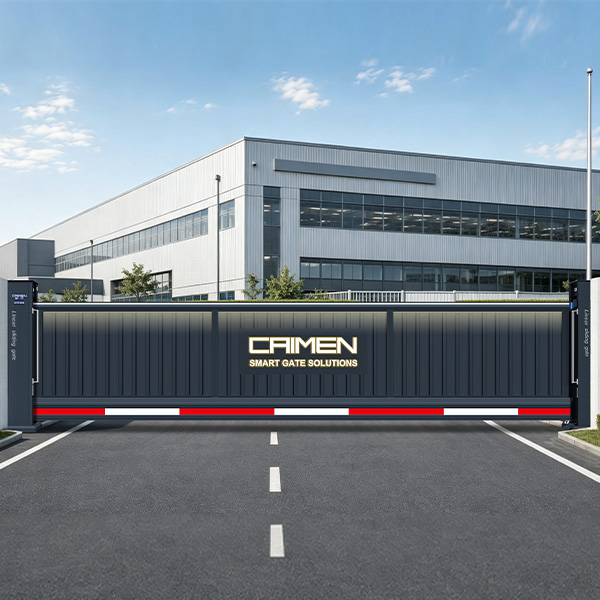

Engineered for high-security commercial, industrial, and residential properties, the Cantilever Sliding Gate System delivers a heavy-duty, trackless access solution.
The advanced cantilever mechanism supports smooth all-weather operation without ground track installation, making it suitable for wide openings, high-traffic entrances, and uneven terrain.
Key Features and Advantages
1. Heavy-Duty Aluminum Structure
- 6005-T6 and 6063-T5 Structural Grade Aluminum: Premium architectural aluminum alloys provide high tensile strength and rigid, zero-sag performance across large openings.
- Lightweight and High Strength: Aluminum construction reduces overall gate weight while maintaining reliable structural performance for frequent operation.
- Corrosion-Resistant Finish: A coated aluminum surface supports outdoor durability in commercial, coastal, and residential environments.
2. Advanced Trackless Cantilever System
- No Ground Rail: The suspended gate movement avoids track blockage and reduces maintenance at entrances exposed to dirt, snow, or uneven paving.
- Smooth Carriage Movement: Heavy-duty carriage hardware and guide components help the gate move steadily through repeated opening cycles.
3. North American Architectural Grade Coating

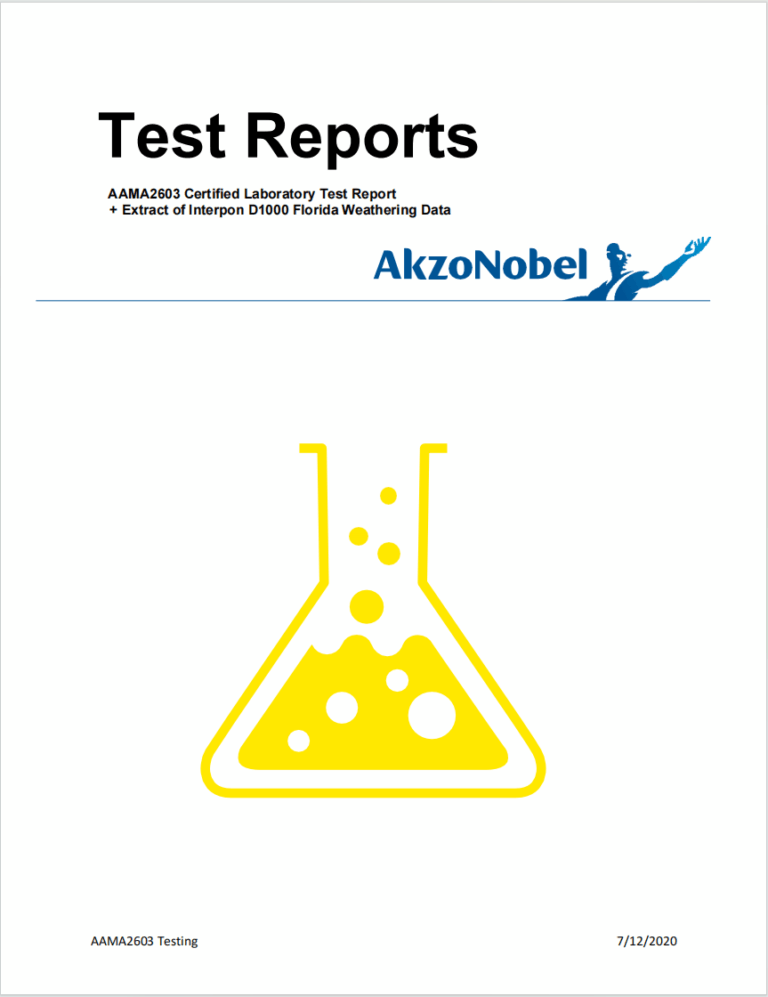

- AkzoNobel Fluorocarbon Finish: The coating system is selected for color stability, weather resistance, and long-term exterior use.
- Custom Color Support: Project-specific colors can be discussed to match building facades, fencing, and perimeter design requirements.
4. Low Maintenance and Easy Installation
- Factory-Prepared Structure: Modular production and prepared hardware points help reduce installation complexity on site.
- Simplified Service Access: The design supports inspection, adjustment, and maintenance without relying on exposed ground tracks.
Infrared Anti-Climb and Anti-Entrapment
Infrared protection can be integrated to detect movement and reduce entrapment risk around the operating area.
Auto-Reverse Anti-Collision System
Obstacle-sensitive reversing helps protect vehicles, pedestrians, and gate hardware during closing.
Emergency Cut-Off Switch
Emergency stop support allows operators to interrupt gate movement when needed.
Pressure-Sensitive Safety Edge
A safety edge can be specified for anti-pinch protection at critical contact points.
Access Control Ready
The system can work with remote controls, card readers, keypads, loop detectors, and dry contact relay signals.

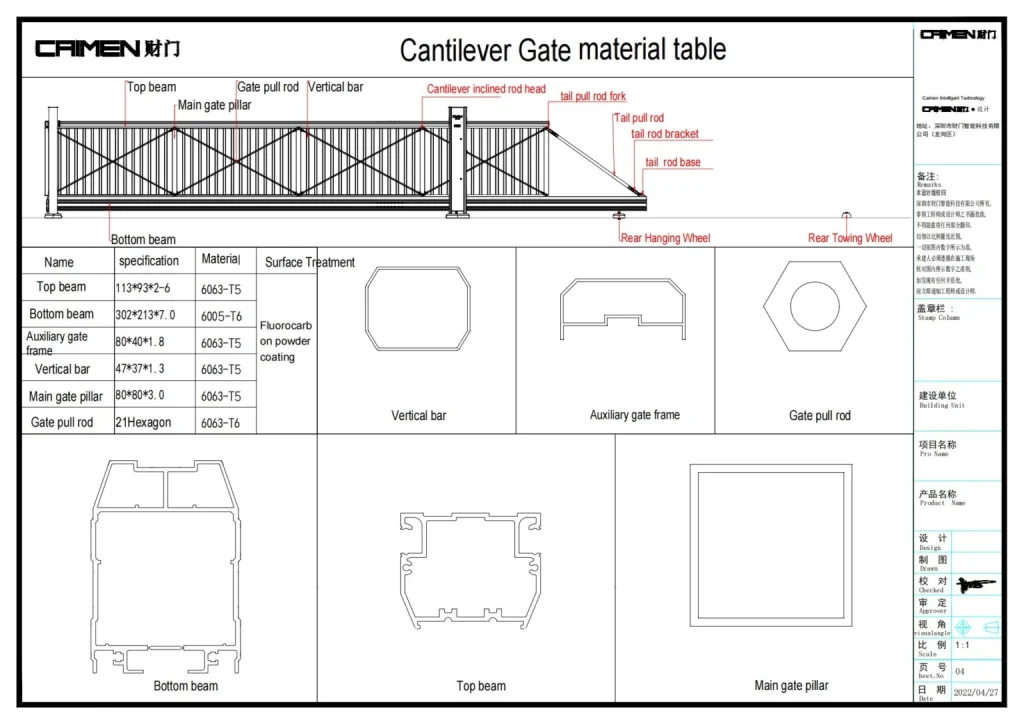

Product Diagram
All dimensions are in mm. The schematic diagram takes one of the models as an example and is for reference only.
Technical Specifications of motor
| Gate Operating Speed | 18 - 22 m/min (VFD Adjustable) | Capacitance | 18 uF / 450V |
|---|---|---|---|
| Rated Power | 500 W | Drive Technology | Variable Frequency Drive (VFD) |
| Input Voltage | 110V / 220V AC (Customizable) | Control Interfaces | Remote Control and Dry Contact Relay Signal |
| Frequency | 50 Hz / 60 Hz | System Integration | Compatible with access control systems |
| Protection Class | IP54 | Insulation Class | Class B |
