LED Display Module Checklist (PDF)
Record module pitch, size, scan mode, mounting pattern and calibration references before requesting a replacement match.
Download Checklist (PDF)LED Display Module
The module defines the visible pixel grid. Select it with the cabinet opening, receiver-card configuration and existing color characteristics in mind.
Application: Replacement of a failed panel or specification of a new indoor or outdoor LED display face.
Interface to check: Compare width, height, pixel resolution, mounting pattern, scan mode and HUB connector before ordering.
Service note: Confirm front or rear access and keep model and calibration references with the spare inventory.
LED Display Module: application and fit

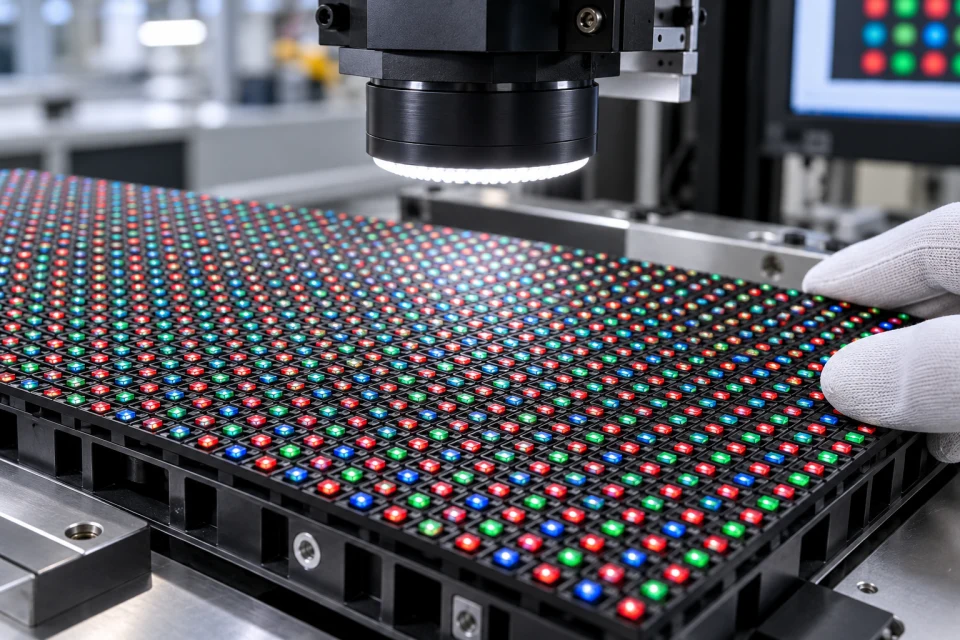

For an OEM module build, the LED package, PCB layout, driver configuration and surface finish are reviewed as a matched assembly. Mechanical drawings and the approved control file help keep the pixel grid consistent across a larger display.
Replacement supply needs an additional visual check. Color calibration records, viewing conditions and the age of adjoining panels affect whether a new module will blend into an existing wall after installation.
Visual fit

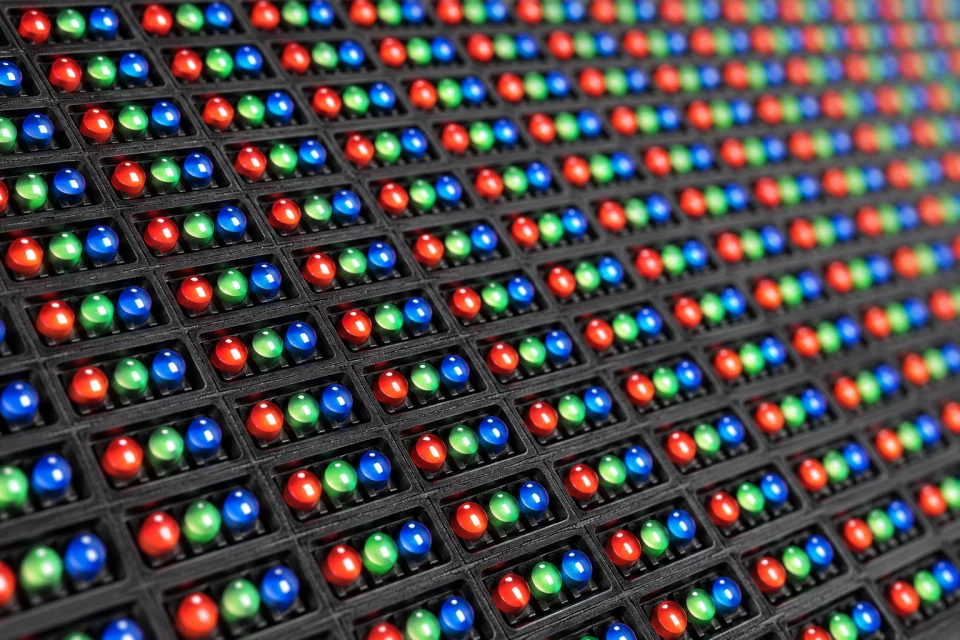

Pitch and resolution set the pixel grid; brightness and calibration affect how a new panel blends with the existing screen.
Mechanical fit

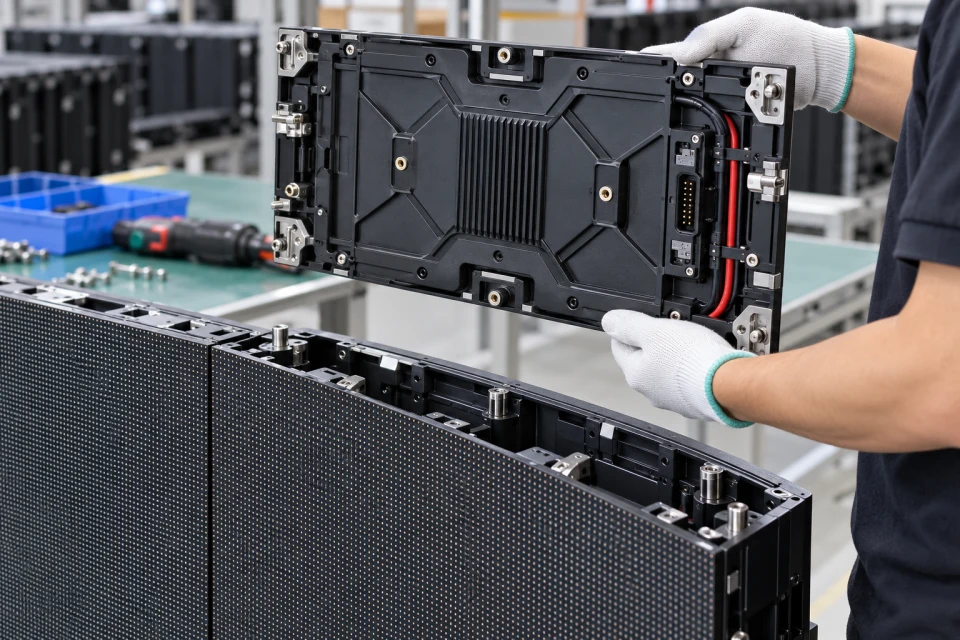

The module outline and fixing points must match the cabinet or mounting frame.
Control fit

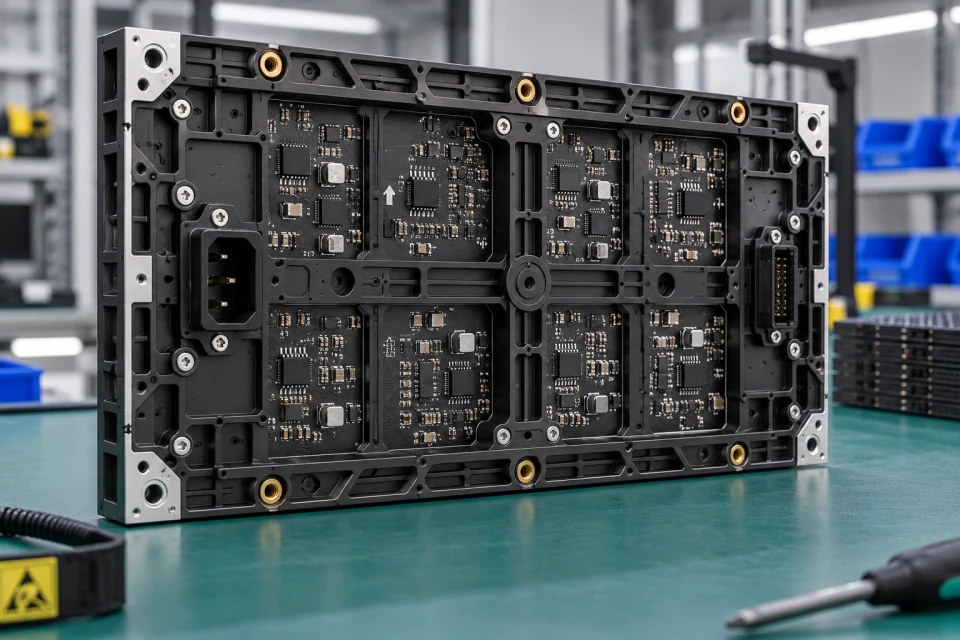

Scan mode, driver configuration and connector pinout must agree with the HUB and receiver card.
LED Display Module Specification Request Checklist
LED Display Module Details to Confirm
| Pixel pitch | Confirm from the approved display design |
|---|---|
| Module size | Match measured width, height and fixing points |
| Pixel resolution | Match cabinet mapping and receiver loading |
| Electrical interface | Verify voltage, scan mode and pinout |
Record module pitch, outline, scan configuration and color-matching reference; confirm the exact replacement against the installed cabinet and receiving card.
Review LED Display Module for Your Display
COMPONENT INQUIRY
Discuss LED Display Module Compatibility
Send the module label, measured outline, pixel pitch and a photo of the neighbouring panels. We can review mechanical fit and the visual matching information needed for a replacement batch.
